Product card

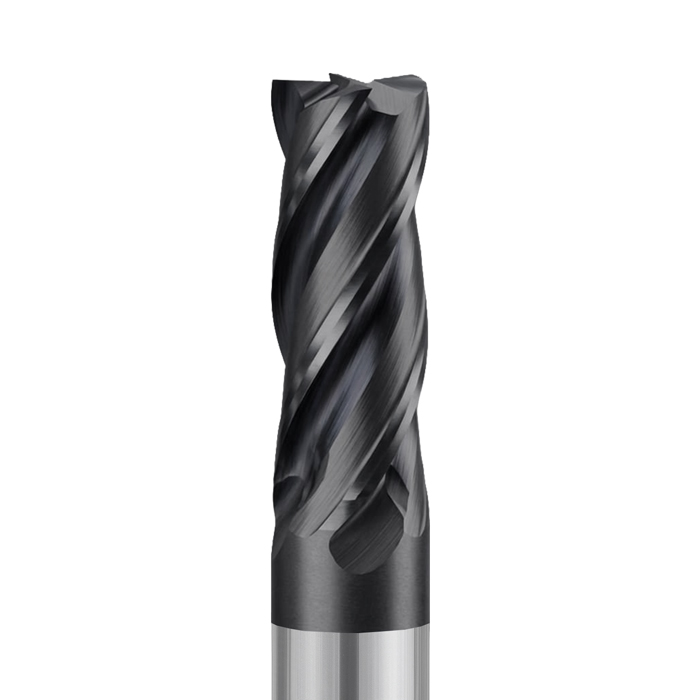

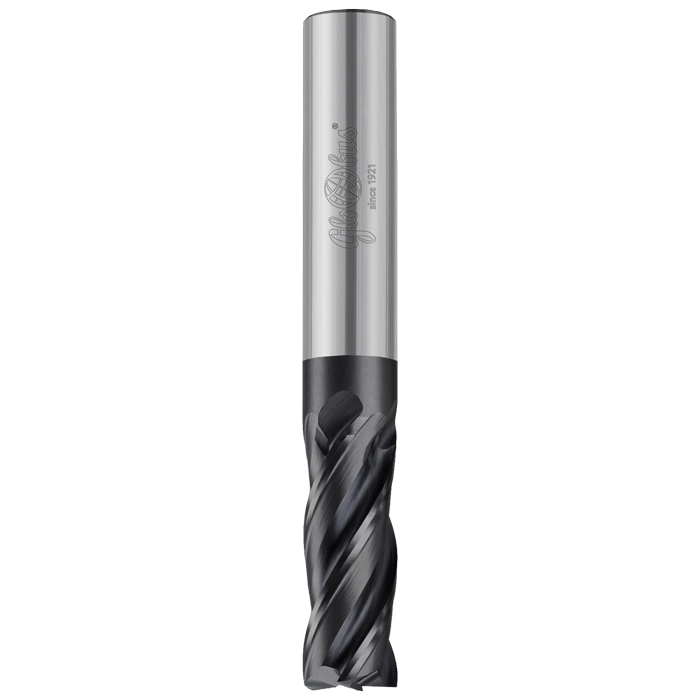

Coated solid carbide finishing end mills, Z4 positive - for machining steel and metals
LV840P
New
Application
designed for milling materials with a hardness of up to 45 HRC on the Rockwell scale - workpiece materials: steel, cast iron, stainless steelfour-fluted shank milling cutter = Z4 (4 flutes)the special cutting edge geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpiecethe hardfacing coating used (AlTiN - aluminium and titanium nitride - 3,400 HV) significantly increases tool life during metal cutting Features - benefits
solid carbide cutters with PVD coating - body and cutting edge made of cemented carbideperfectly matched chip groove shape and rake angle, which facilitate chip evacuationcutters available in diameters from 3 mm to 20 mm, with varying overall lengths and cutting edge lengthsused on high-performance CNC machining centres with mechanical feedcutters can be manufactured in roughing and/or ball-end versions, and for machining steel with a hardness of 55 HRC and 60 HRC
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

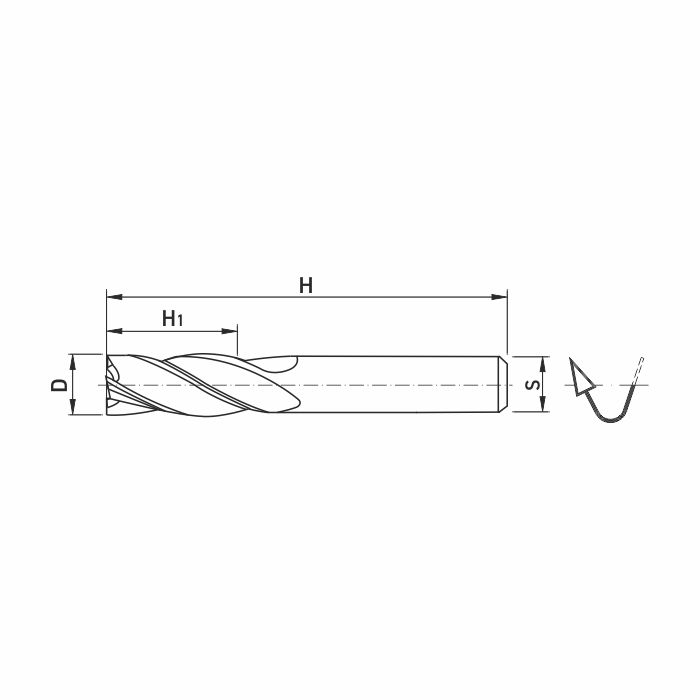

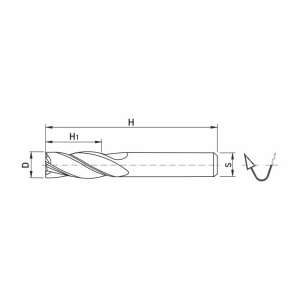

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06 | 15 | 050 | 06 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855325240 | |||
| 08 | 20 | 060 | 08 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855327442 | |||
| 10 | 25 | 075 | 10 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855329590 | |||
| 12 | 30 | 080 | 12 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855330190 | |||
| 16 | 35 | 090 | 16 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855330206 | |||
| 20 | 45 | 100 | 20 | 4 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855330688 |
Catalogue: - to order
