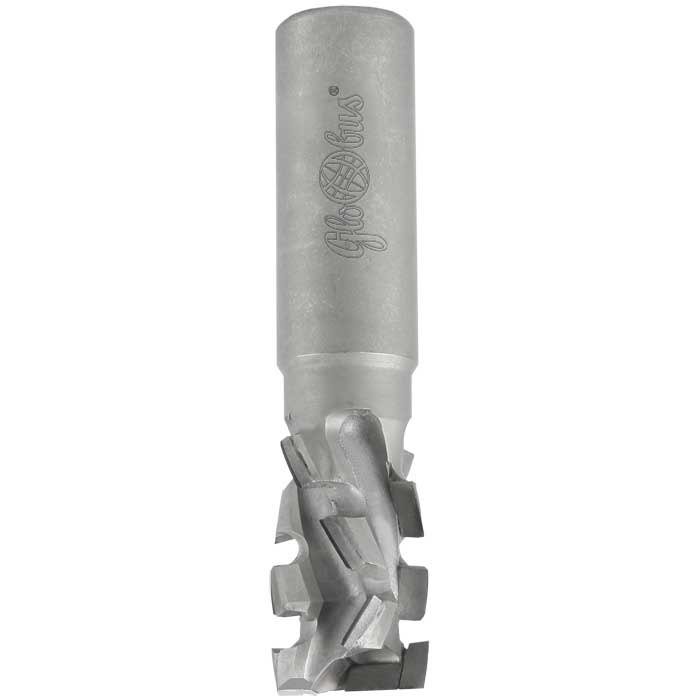

Router bits DIA TRE TOP 4 Champion
DI072
Application

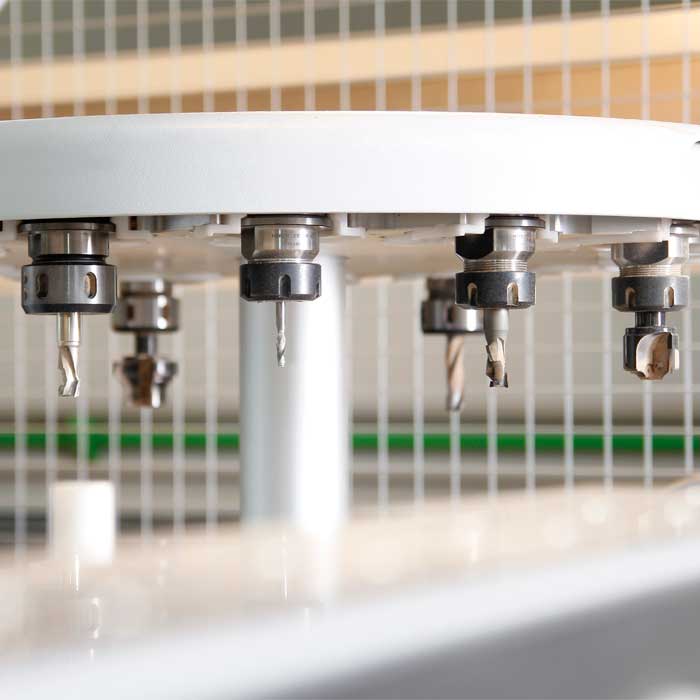

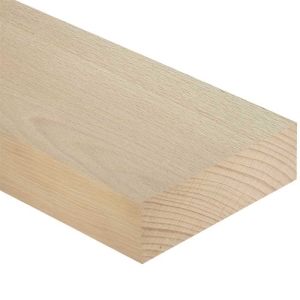

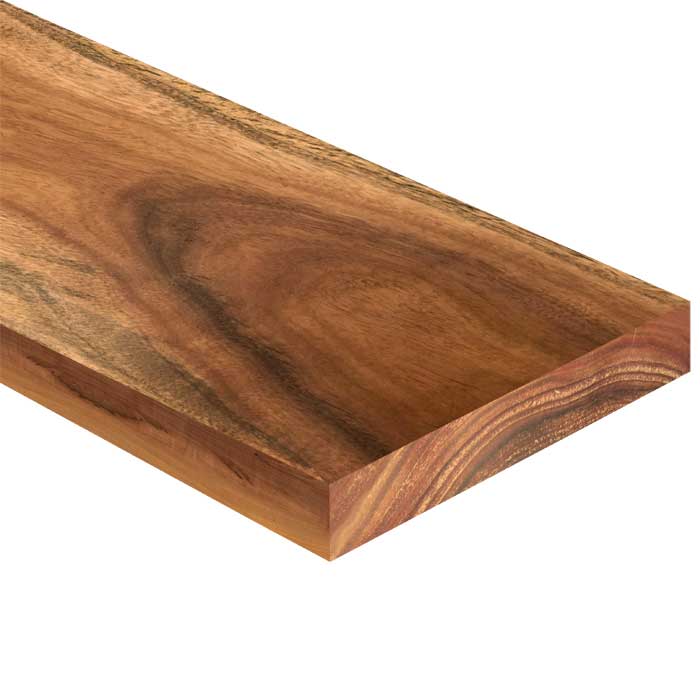

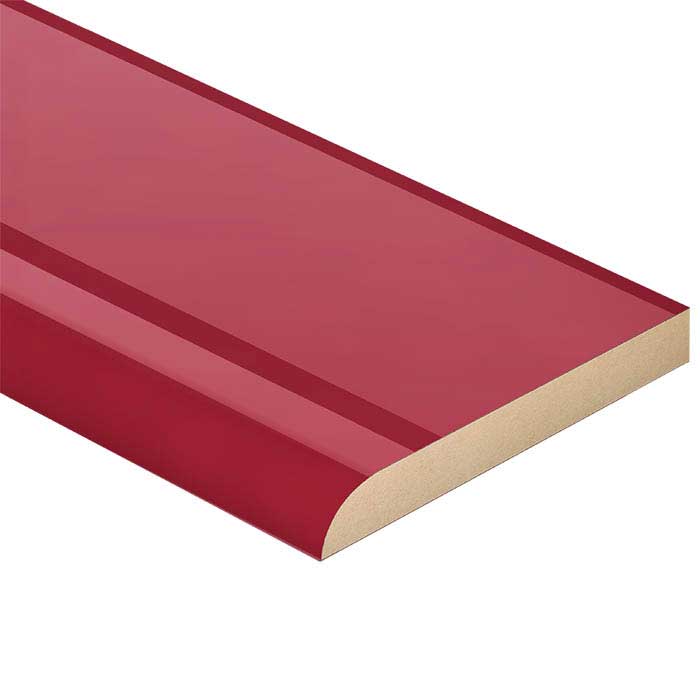

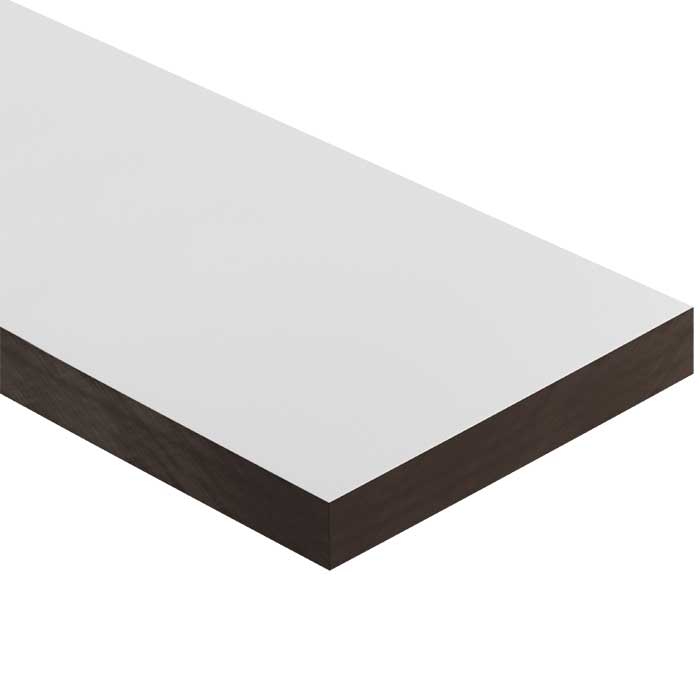

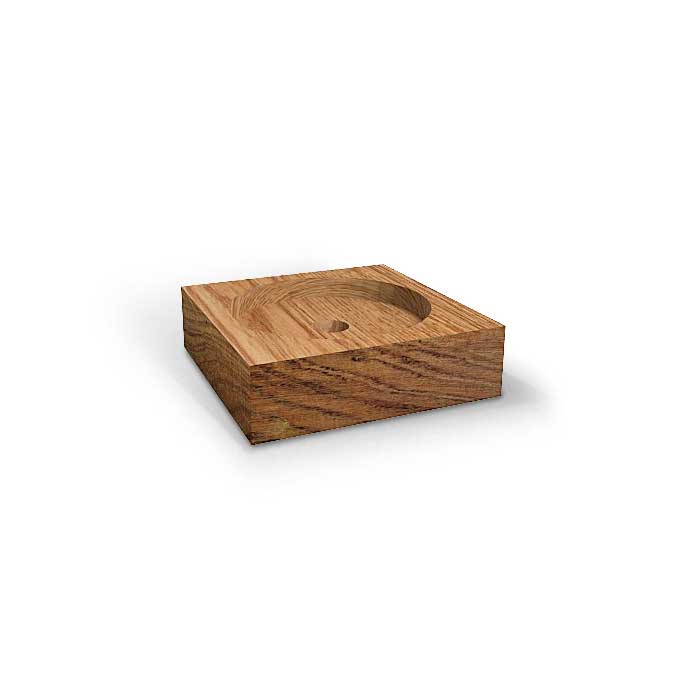

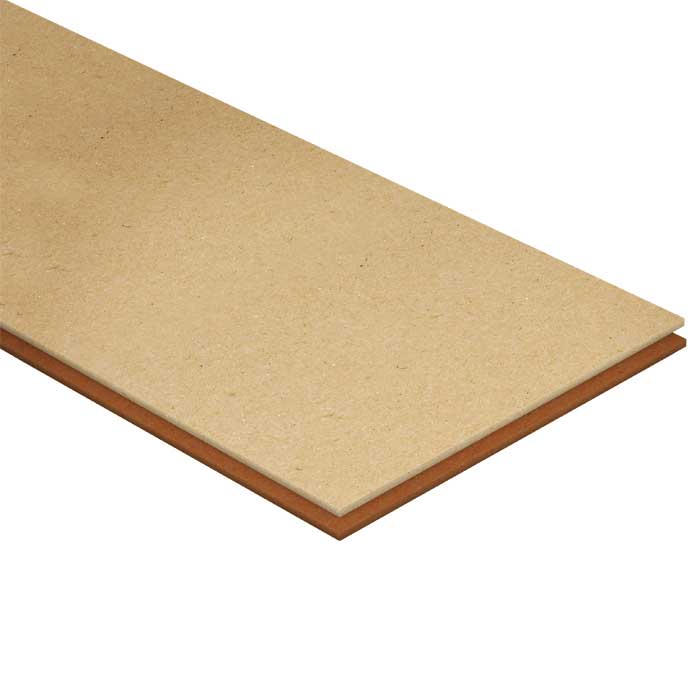

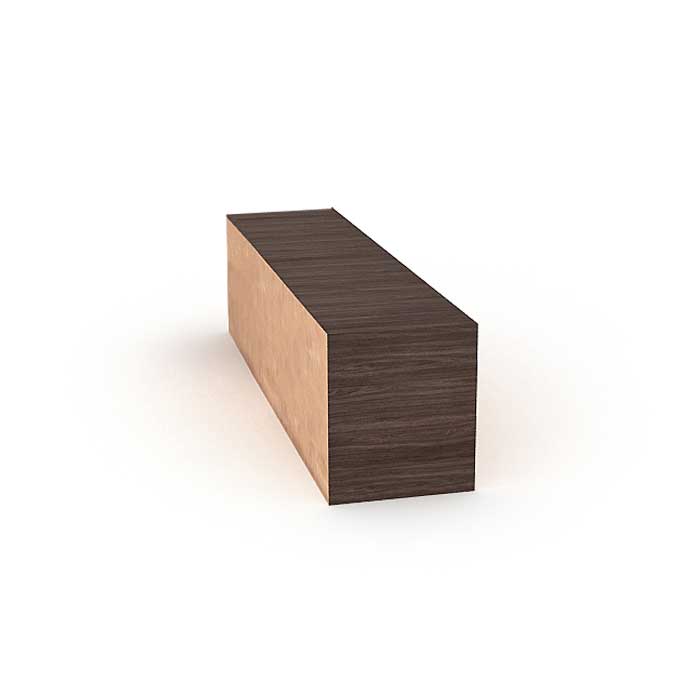

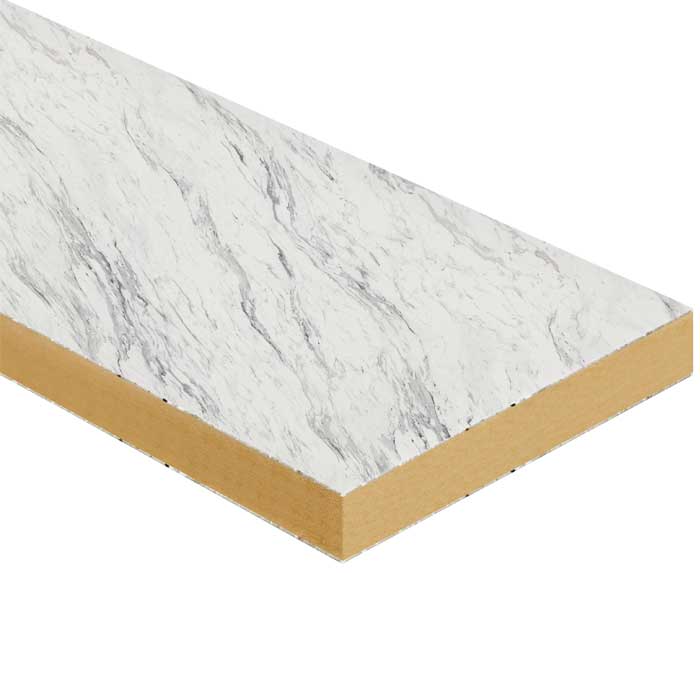

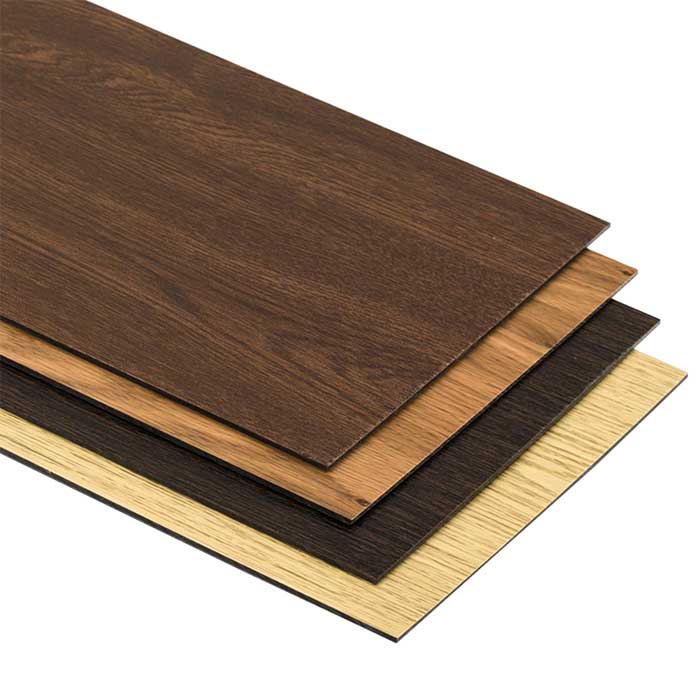

work in high load conditions and with high feed rates, for hard materials processing eg. chipboards, MDF, HDF, hard domestic and exotic woodvery good quality of worked surfacescutting edge shape guarantees the best results in homogenous and veneered (permanently bound) materialsadjusted for mechanical feeddrilling in material and further processing possiblecontour milling Features - benefits
three full PCD edges (arranged in 4 flutes)PCD tip height 4,5mmlong router bit life -> enables: 10-12 sharpenings (depending on exploatation and processed material quality)high efficiency -> adjusted to high load and feed rates from 5 up to 16m/minspecial tips position reduces cutting resistancedrilling tip PCD
Product manager
Jakub Bąk
e-mail: jbak@wapienica.pl
e-mail: jbak@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

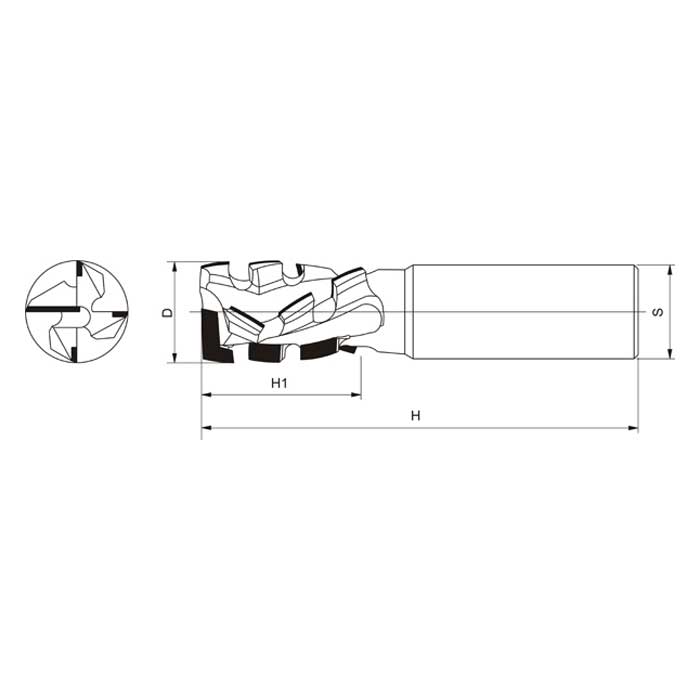

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | S [mm] | PCD | Z | H PCD [mm] | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 22 | 20 | 8+1 | 3+1 | 4,5 | szt | 5900855107334 | |||
| 25 | 30 | 20 | 10+1 | 3+1 | 4,5 | szt | 5900855107341 | |||
| 25 | 34 | 20 | 12+1 | 3+1 | 4,5 | szt | 5900855107358 | |||
| 25 | 39 | 20 | 14+1 | 3+1 | 4,5 | szt | 5900855107365 | |||
| 25 | 44 | 20 | 16+1 | 3+1 | 4,5 | szt | 5900855107372 | |||
| 25 | 49 | 20 | 18+1 | 3+1 | 4,5 | szt | 5900855107389 | |||
| 25 | 55 | 20 | 20+1 | 3+1 | 4,5 | szt | 5900855107396 | |||
| 25 | 60 | 20 | 22+1 | 3+1 | 4,5 | szt | 5900855107402 | |||
| 25 | 65 | 20 | 24+1 | 3+1 | 4,5 | szt | 5900855107419 |
Catalogue: - to order
Legend:
edge number = no of PCD lines + drilling tip PCD
Optimal feed rate depends on individual machine working parameters: type of cut material, rotary speed, processing type (hobbing or cutting off)
