Product card

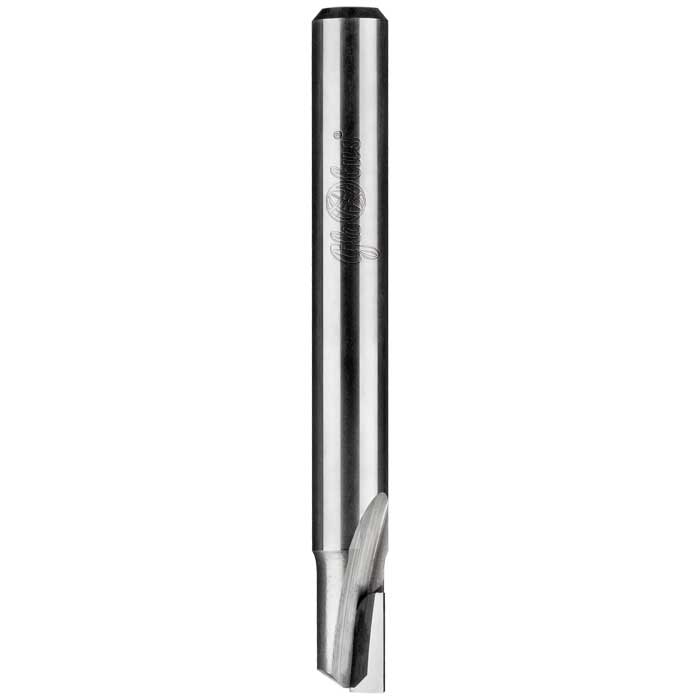

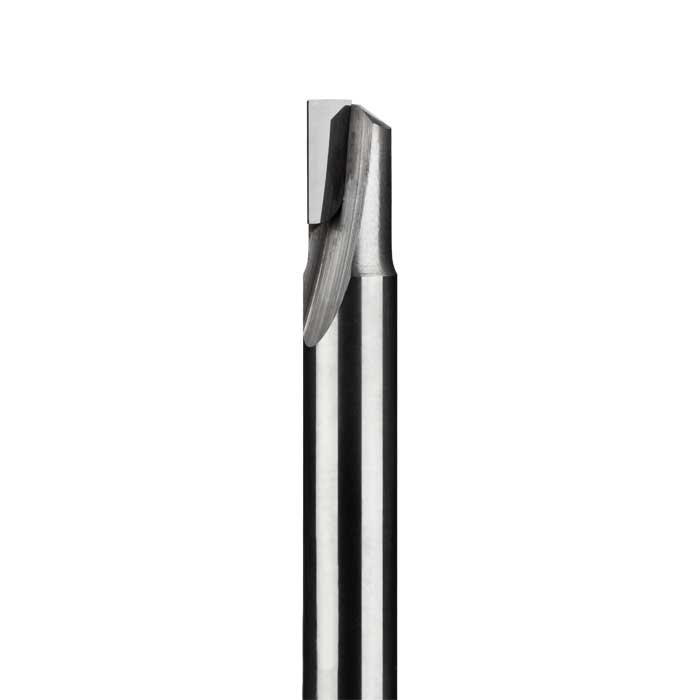

Router bits DIA TOP 1
DI090
Application

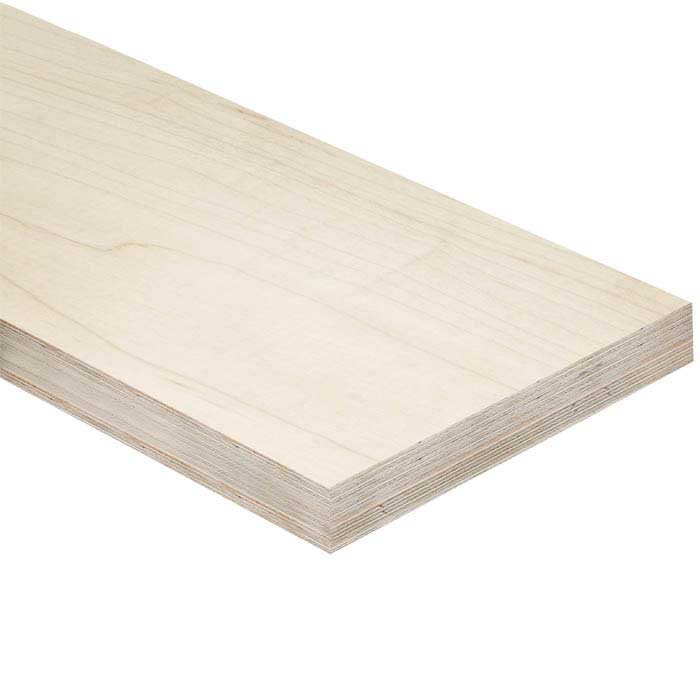

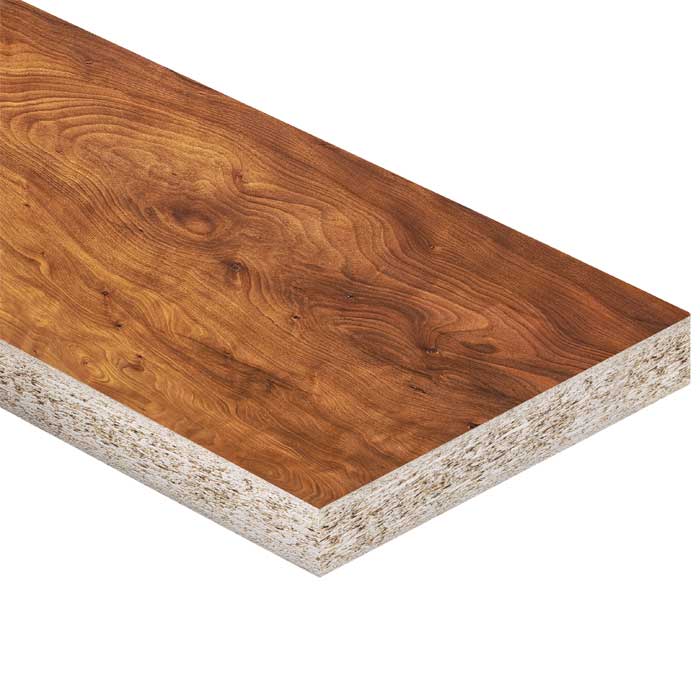

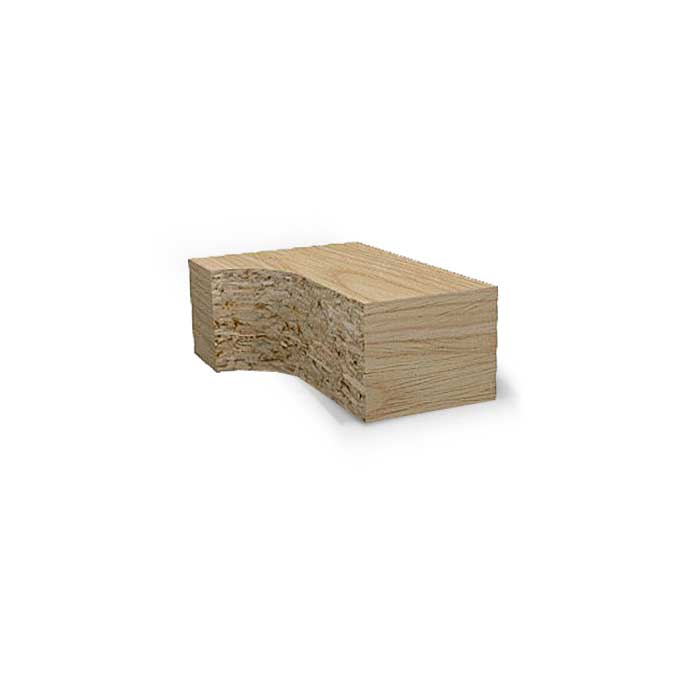

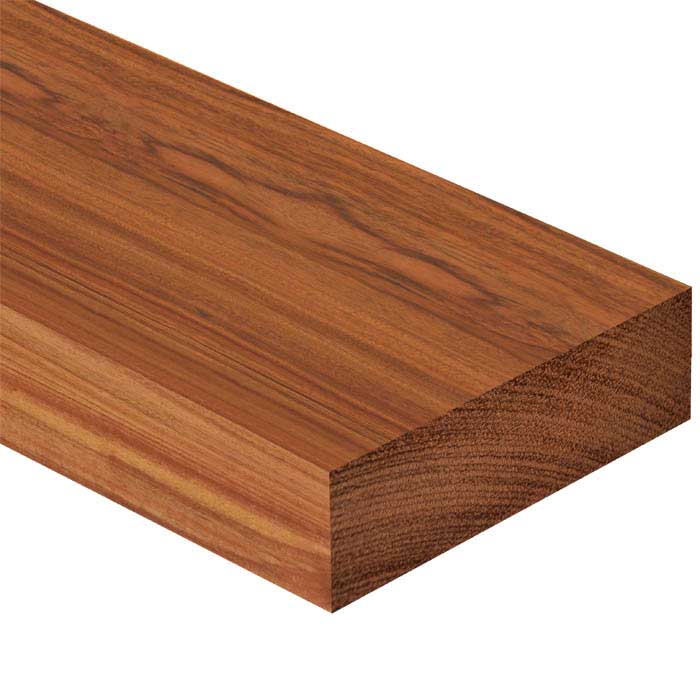

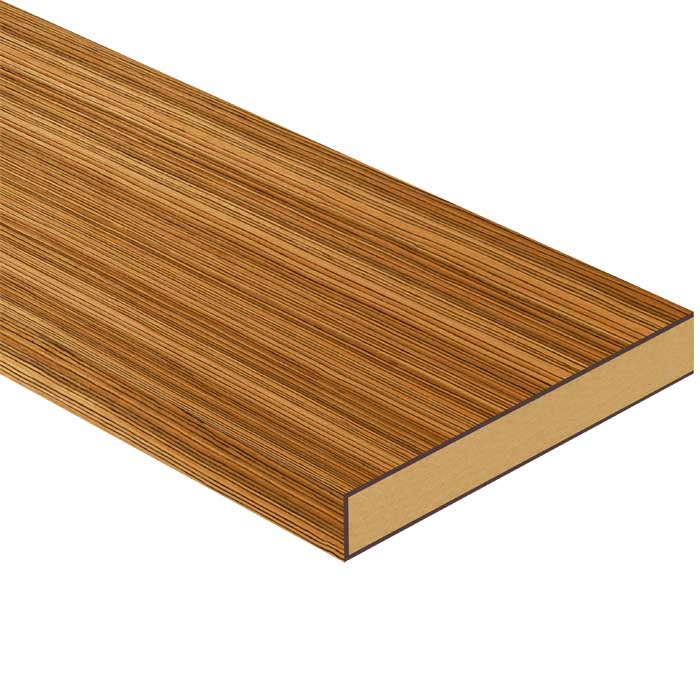

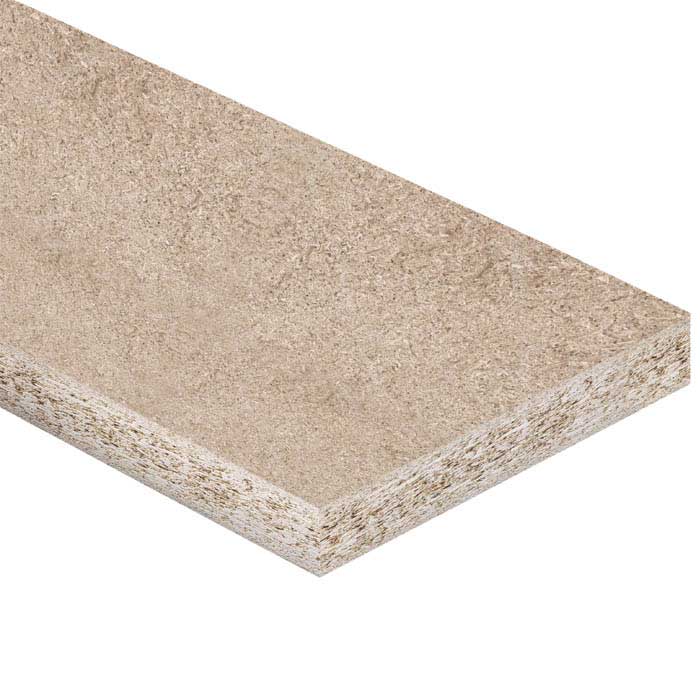

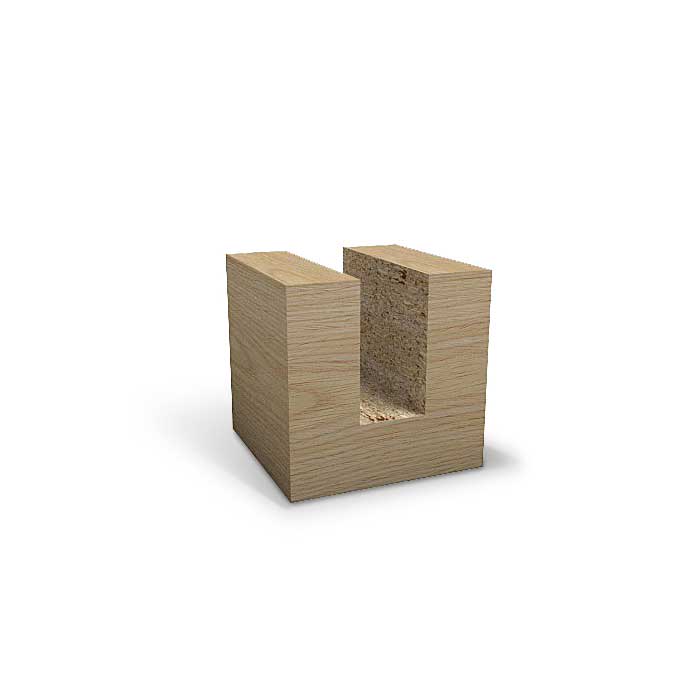

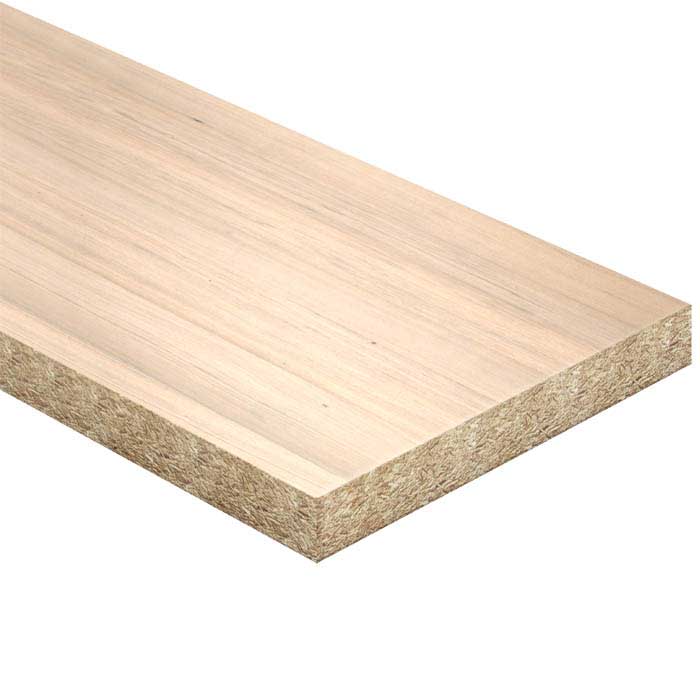

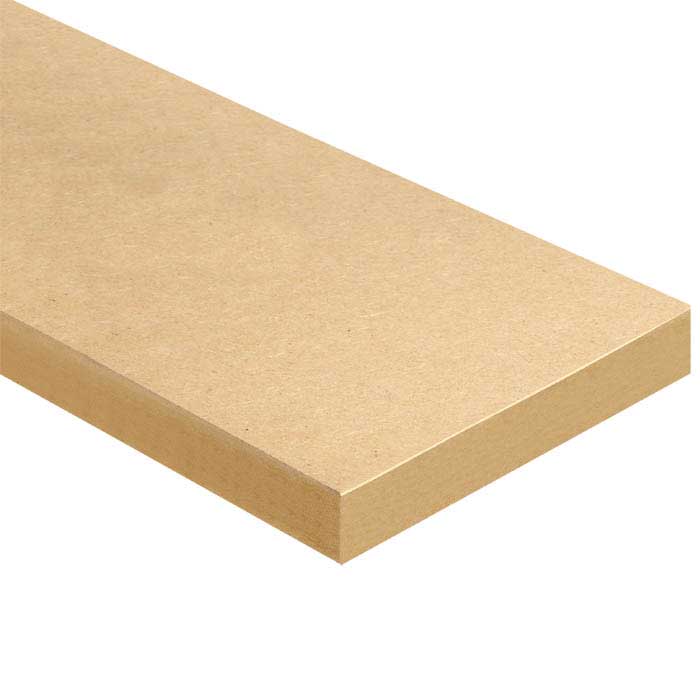

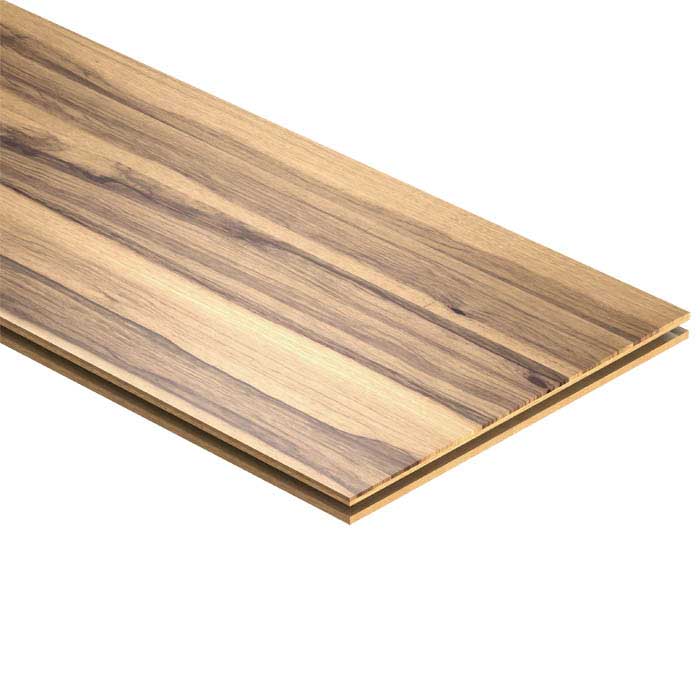

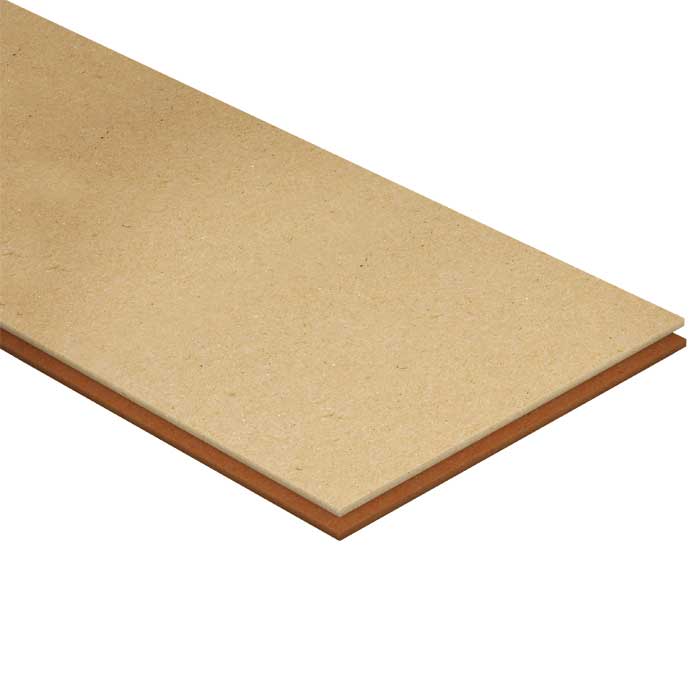

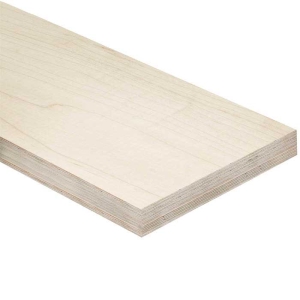

used for work in wood-based materials (raw and laminated chipboard, MDF, etc.)new body construction ensures better work and efficiency and good chip removalused for grooving and rebating eg. for window shutters Features - benefits

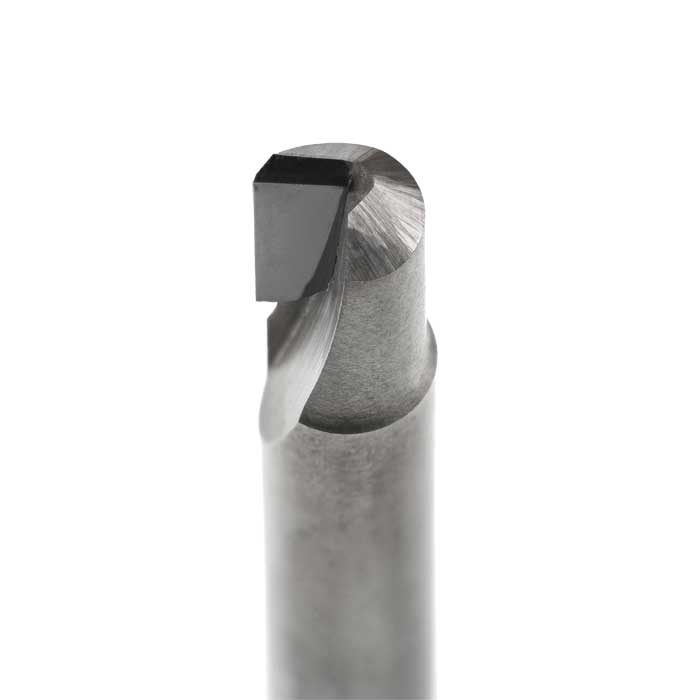

straight router bits - single or double flutePCD tip height 2,7mm (possible: 4-5 sharpenings) or 4,0mm (possible approx. 8 sharpenings)body made to order from steel or sintered carbidefeed rate should not exceed 4m/min
Product manager
Jakub Bąk
e-mail: jbak@wapienica.pl
e-mail: jbak@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

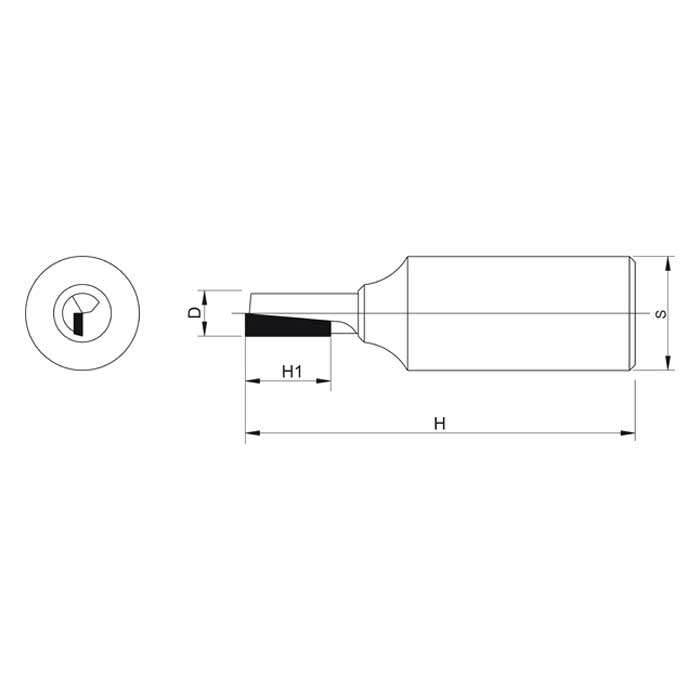

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | S [mm] | H [mm] | Body | Z | H PCD [mm] | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 12 | 65 | stal | 1 | 2,7 | szt | 5900855082693 | |||
| 6 | 12 | 12 | 75 | stal | 1 | 2,7 | szt | 5900855082716 | |||
| 6 | 12 | 12 | 65 | HM | 1 | 2,7 | szt | 5900855082723 | |||
| 8 | 10 | 8 | 80 | HM | 1 | 4 | szt | 5900855099806 | |||
| 8 | 15 | 12 | 85 | stal | 1 | 2,7 | szt | 5900855082754 | |||
| 8 | 15 | 8 | 80 | HM | 1 | 4 | szt | 5900855099813 | |||
| 10 | 20 | 12 | 75 | stal | 1+1 | 2,7 | szt | 5900855082778 | |||
| 4 | 10 | 6 | HM | 1 | 2,5 | szt | 5900855392815 | ||||
| - available | 8 | 15 | 8 | 65 | HM | 1 | 4 | szt | 5900855392822 |
Catalogue: - to order
Legend:
edge number = no of PCD lines + drilling tip HM
straight single flute router bit with one PCD tip on one side of router bit axle, straight double flute router bit with PCD tips on both sides of router bit axle
optimal feed rate depends on individual machine working parameters: type of cut material, rotary speed, processing type (hobbing or cutting off)
